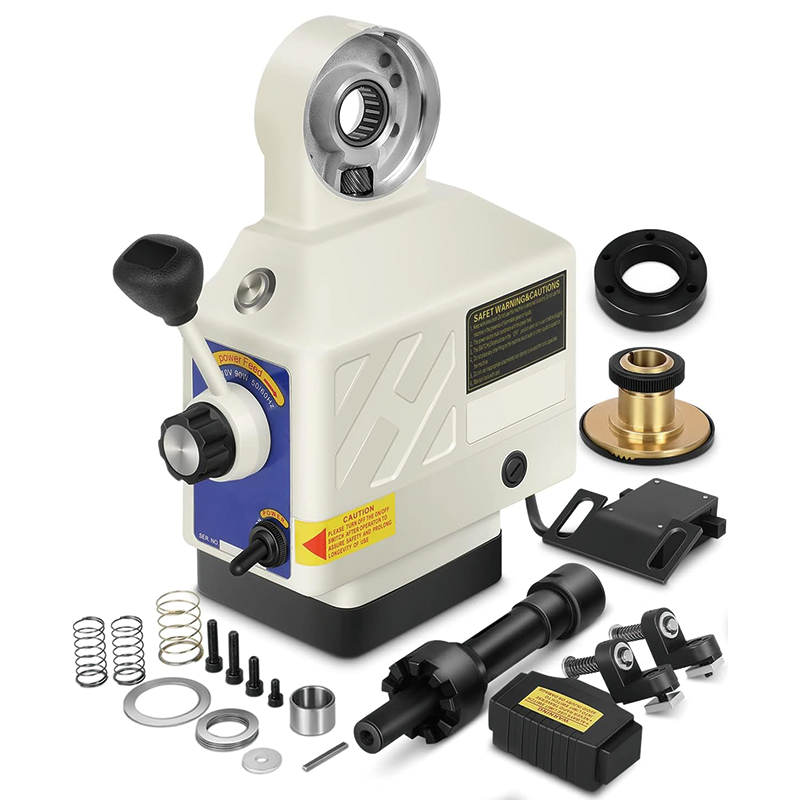

Z-Axis Power Feed for Milling Machine, 460 in-lb Torque, 0-200RPM Table Milling Machine Power Feed 110V, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter

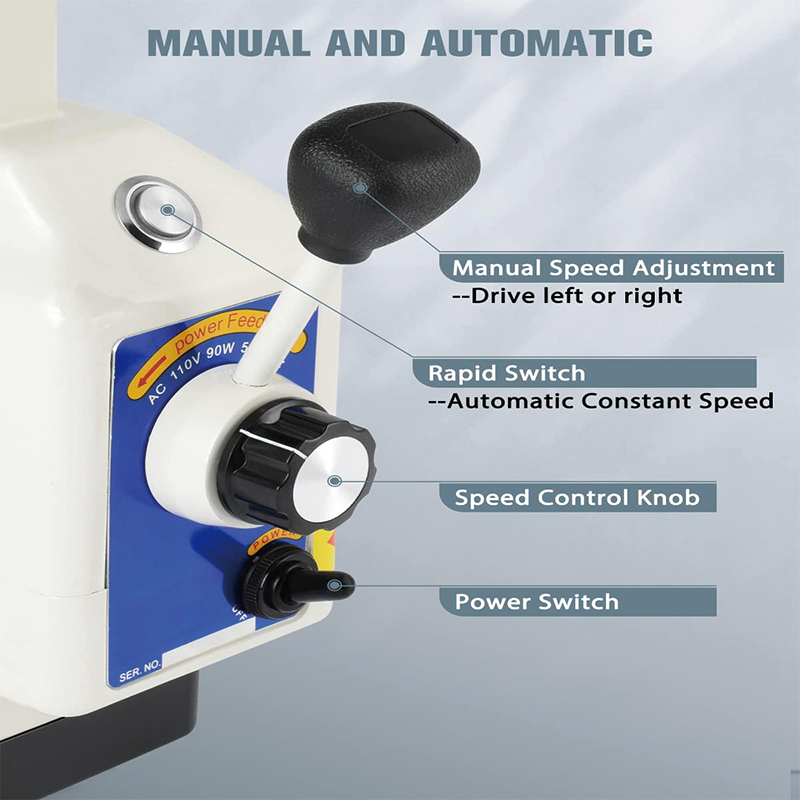

Manual and Automatic Control

This multifunctional power feed for milling machine can be set to work automatically at a constant speed, or it can work by adjusting the speed adjustment knob. And the circuit breaker automatically protects the transmission gear and electronic components during the whole process.

High Efficiency and Low Noise

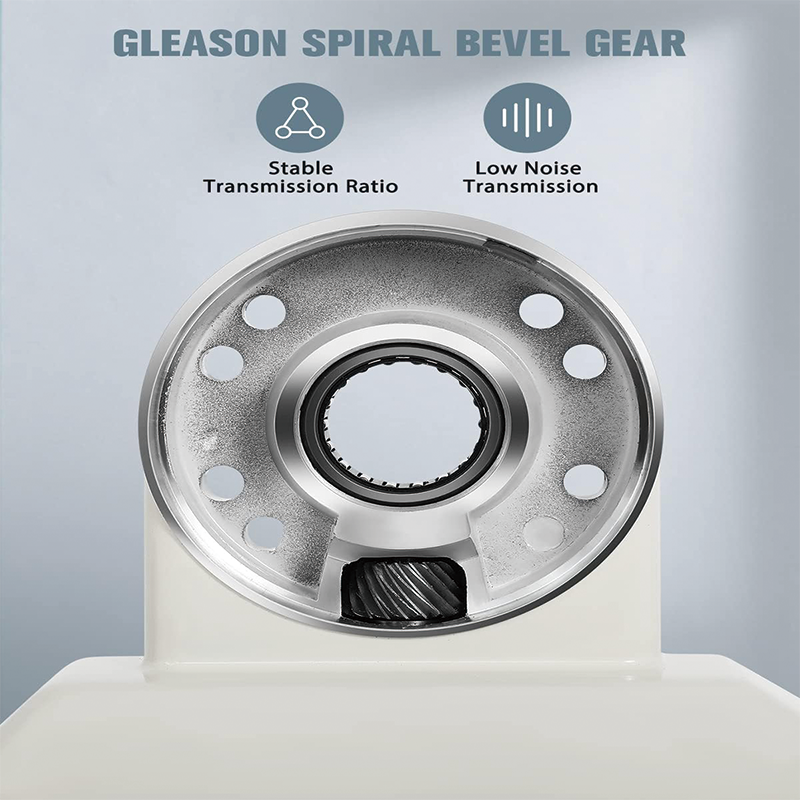

This mill power feed adopts Gleason Spiral Bevel Gear: High transmission efficiency, stable transmission ratio, wear resistance, long life, low noise, large arc overlap coefficient, high bearing capacity, reliable operation, compact structure and energy saving. Considering the loud noise when the milling machine is working, the low noise feature of this power feed is very helpful in reducing the noise in the working environment.

Simple Operation

Rotate Speed: 0-200 RPM; Max Feed Rate: 650mm/min; Max Return Speed: 850mm/min.

The speed adjustment efficiency is fast. When milling, the transmission speed changes little, and the milling surface has high precision and smoothness. The machine will not shake when it is driven at low speed.

Power Feed Z-Axis

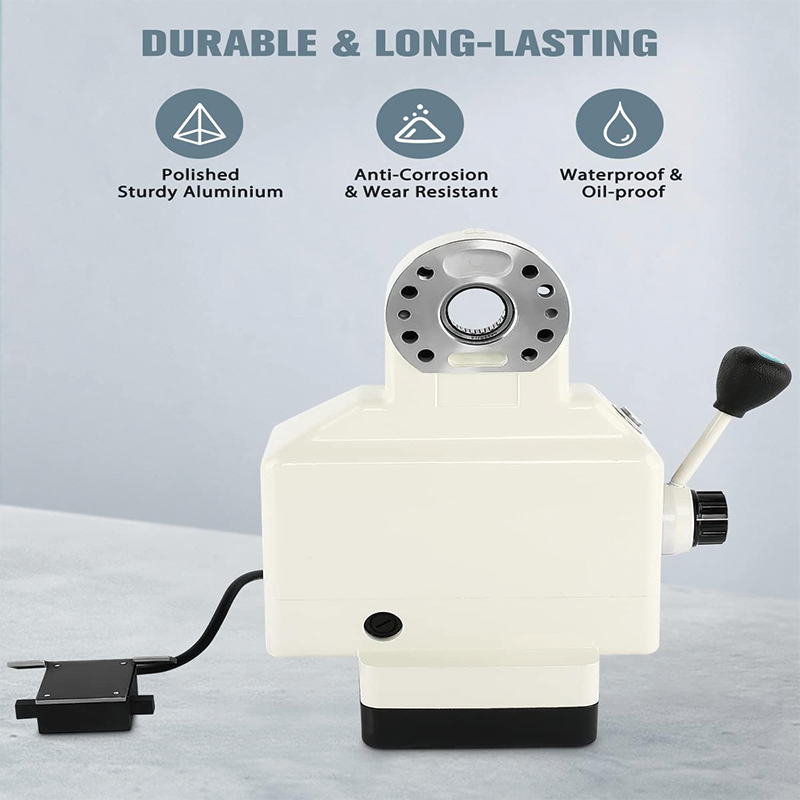

This power feed Z-axis for milling machine is made of tough aluminum, which is strong and durable. Its surface has been specially treated such as polishing to resist corrosion and abrasion, which allows it to maintain a long service life.

Installation Precautions:

1. Before installation,be sure to turn off the power supply of the milling machine. Don't install the power feed under live condition.
2. The product is supplied by AC110V 50/60Hz (Please
 prepare the required power supply for the product).If the product is used in a region not in conformity with the national power supply, please prepare a transformer, avoid using incorrect power supply and result in damage of the product.
3. The product is provided with overload protection, the power supply will be cut out in case of overload or stuck. It can be reset automatically by restarting the power switch.
4. Check whether spiral gear oil is enough when carrying out maintenance. Open the carbon brush cover semiannually to check whether the carbon brush is worn. If the length is less than 7mm,it is recommended to replace the two sets of carbon brushes at the same time.
5.
