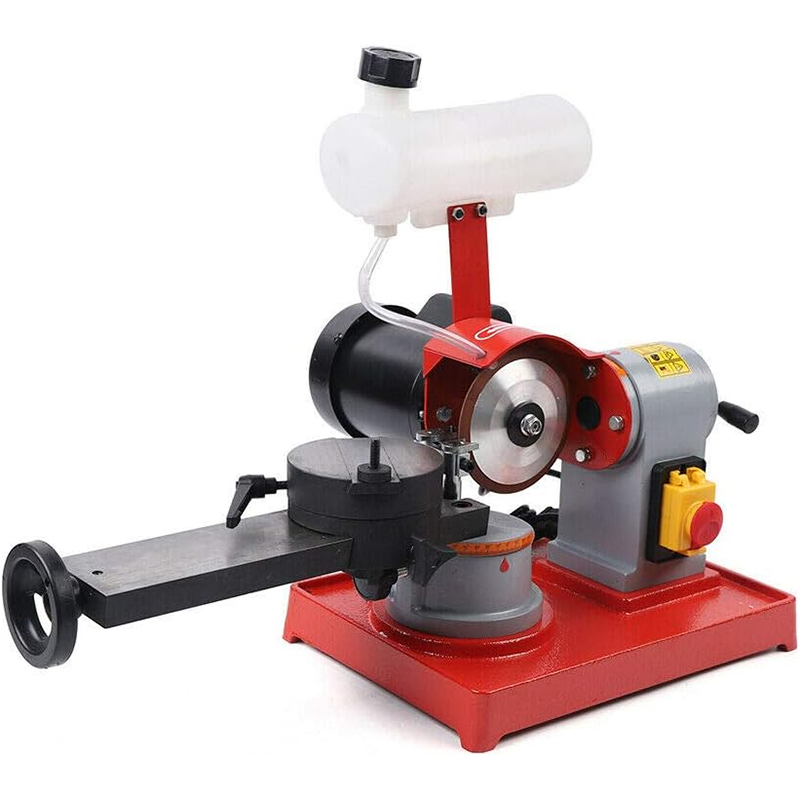

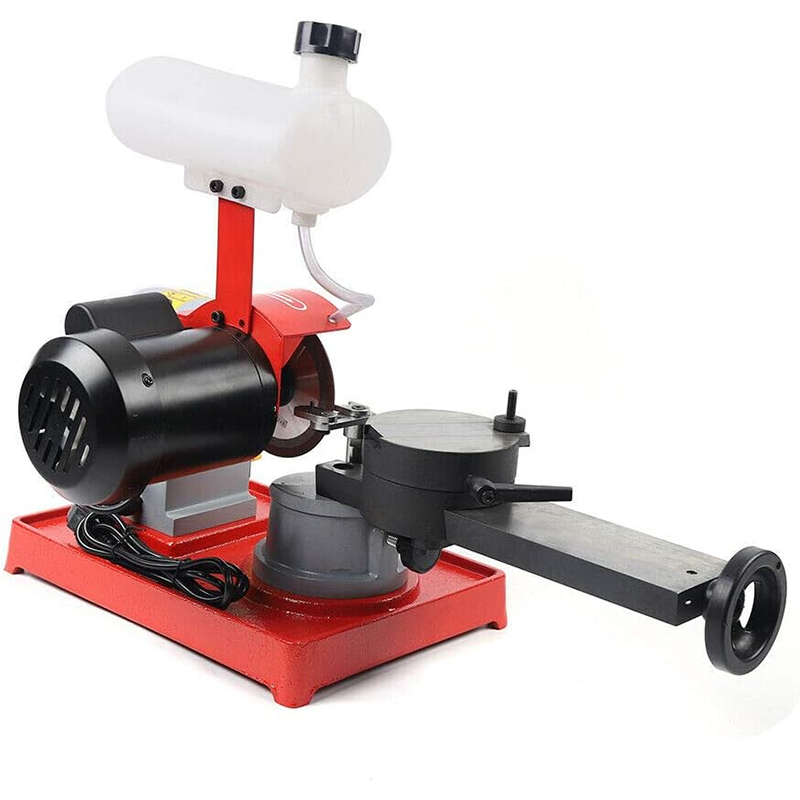

Circular Saw Blade Sharpener 5 Inch Grinding Wheel Size, Rotary Angle Grinder 370W, Saw Blade Sharpener for Carbide Saw Blades

Features
Power: 370W
Voltage: 220V
Operation speed: 2850rpm
Wheel angle adjustment: ±20°
Handle rotation angle: 30 degrees left, 45 degrees right
Working diameter: 80-700mm
Whetstone size: 125mm
Whetstone hole size: 32mm
Wheel size: 125 x 10 x 32 x 5 x 2 mm

Operation mode:
1. Loosen the fascia, then adjust the angle of the grinding knife and fix it.
2. Adjustment of the center axis.
Turn the center axis to the grinding blade
Push the center axis to the right
By installing the saw blade, you can turn the wheel and determine whether the teeth of the grinder are blocked.
Turn the rotary table to fix the angle of the blade.
The intersection angle between the grinding surface and the working surface is about 5°.
3. Adjust the overall positioning
Adjust the saw blade to the best grinding position by rotating the positioning trimmer.
Adjust the positioning pin to the

appropriate root of the grinding tooth and leave the grinding amount distance, and install the fixing screw.
4. Make the grinding amount on the right the same by adjusting the distance of the center axis.
5. When all parts are installed, grind the saw blade with a slat.
