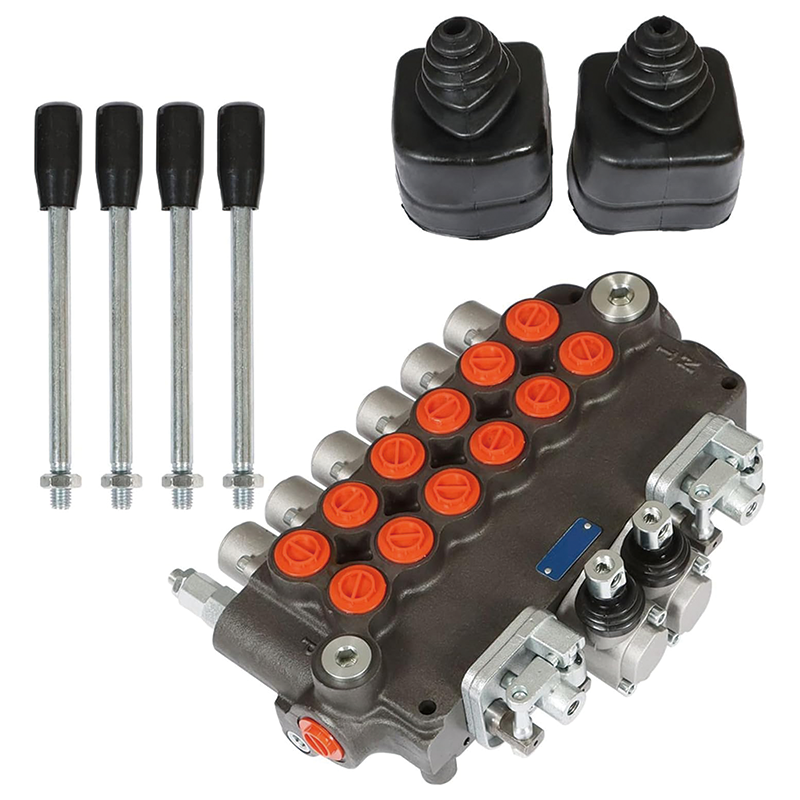

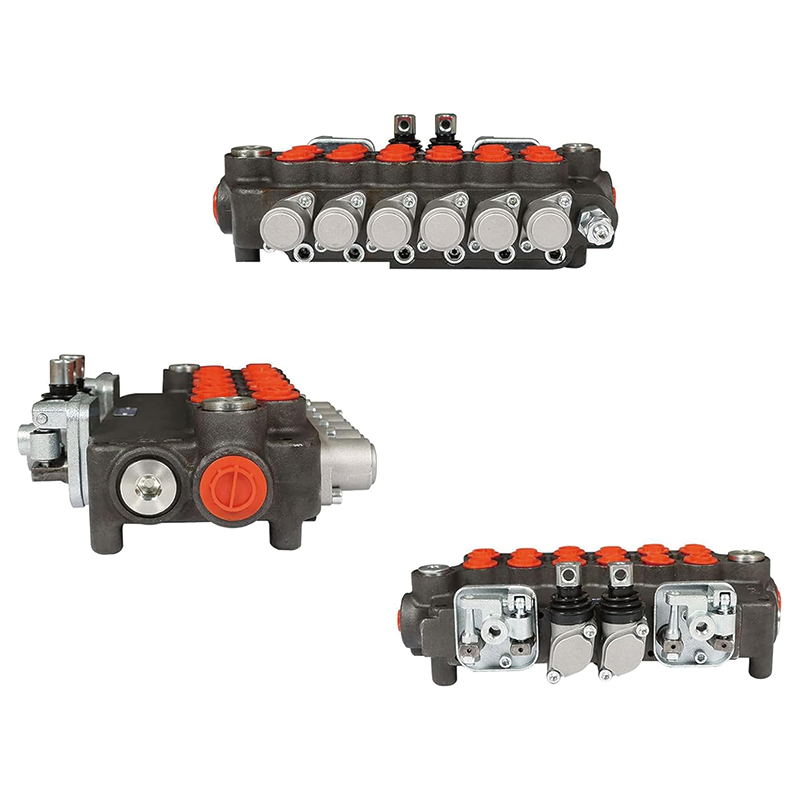

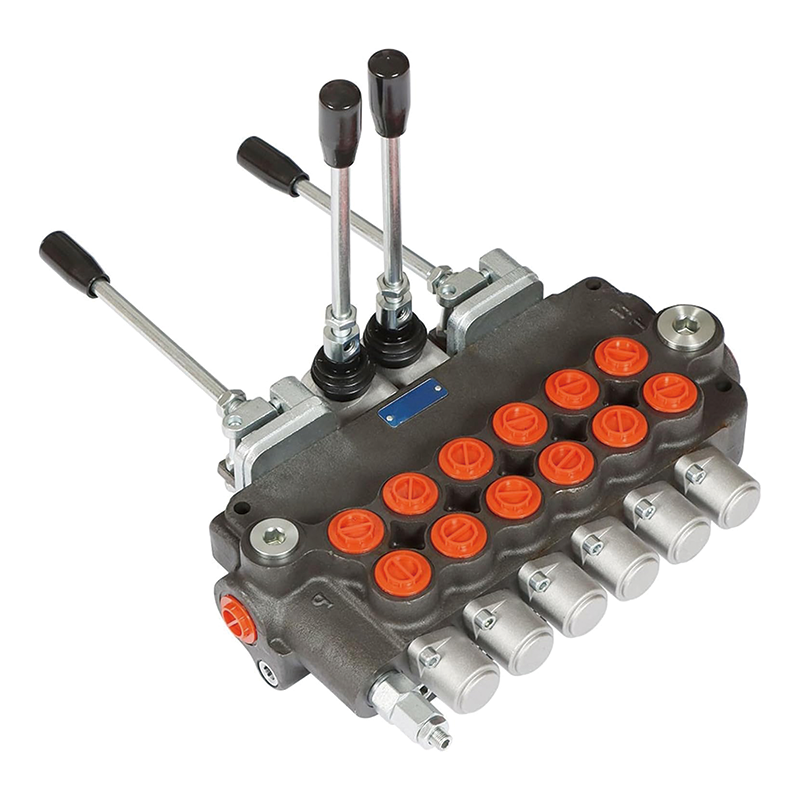

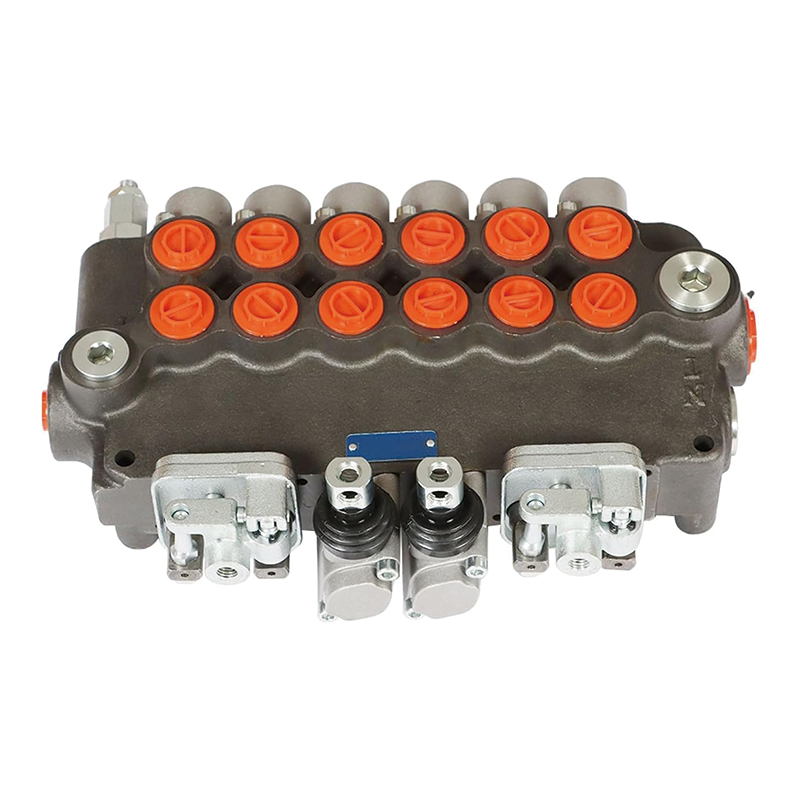

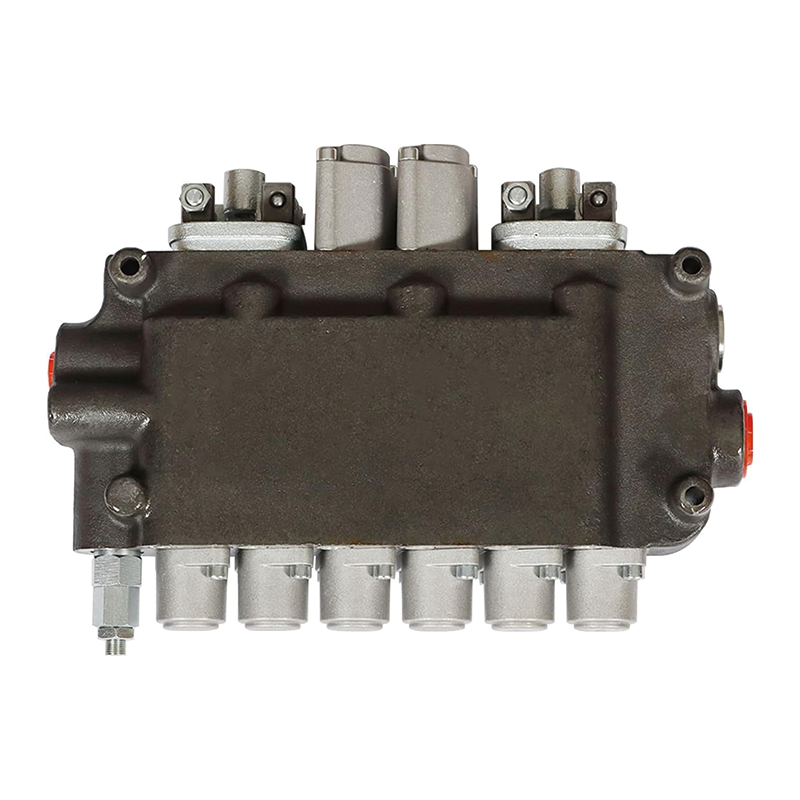

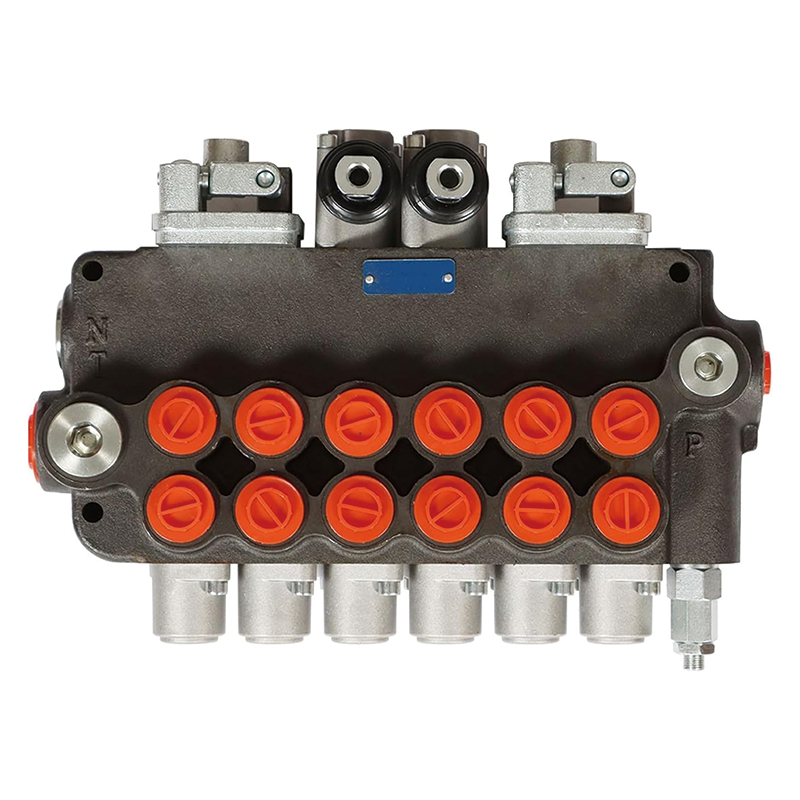

6 Spool 21 GPM Hydraulic Control Valve,Hydraulic Valve Double Acting Valve, with 2 Joystick,Controls for Tractors Loaders Tanks

Specifications

Flow Rating: 21GPM (80l/min)

Inlet Port: SAE10 O-Ring (7/8"-14) Thread

Outlet Port: SAE12 O-Ring (1-1/16") Thread

A/B Work Ports: SAE10 O-Ring (7/8"-14) Thread

Adjustable Relief Valve Range: 1500 to 3625PSI

Max Operating Pressure: P = 3625PSI, T = 725PSI, A&B = 4350PSI

Features

1.Cast iron material, overall casting of valve body.

2.SAE O-ring ports ensure a secure seal and are not easily clogged.

3.Capable of closed center or power beyond (conversion plug required).

4.Accuracy ground and hard chrome-plated spools assure a long life.

5.Used for open center systems (pump to tank flow) - closed center option available.

6.6 spool valve with 2 joysticks and compact design allows for installations in tight areas.
